RTM
Smart Wireless Internal Lighting Node
Designed to create smart decorative or architectural lighting system zones, for municipal or private networks.
DESCRIPTION

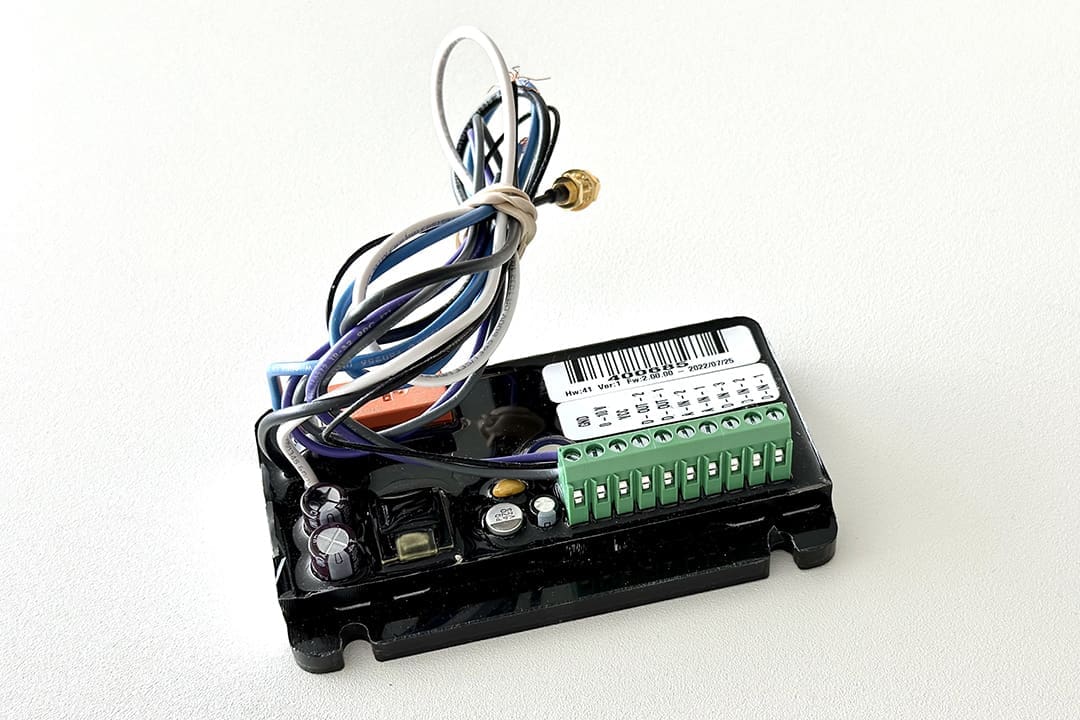

The RTM smart wireless lighting node is a compact and addressable module that facilitates the creation of intelligent lighting control systems.
It is designed to remotely control and monitor decorative or architectural lighting used to light up commercial streets, parkings garages or monuments in parks.
It constantly measures energy consumption while working as a scheduler, knowing when to turn it on, off or dim the lights.
Through dedicated inputs and outputs, the RTM allows the control of other sensors such as luxmeters and motion detectors while controlling the light.
The RTM communicates with Dimonoff Gateways and management platforms Dimonoff | SCMS and DOO Express.
EASY & FAST INSTALLATION
- Slim design for easy fit inside the fixtures
- Quick, simple and economical commissioning thanks to our mobile app compatible with Dimonoff | SCMS, which also allows instant functional tests and geolocation
- Operates with voltages between 110 and 480 Vac and 50/60 Hz
- Equipped with I/Os to control low voltage sensors such as luxmeters, motion detectors, external photocell or a switch
COMMUNICATION OPTIONS
- Digi XBee PRO 2.4 GHz (DigiMesh)
- Digi XBee PRO 900 MHz (DigiMesh)
BENEFITS
The RTM allows you to monitor the exact energy consumption in real-time and track lighting issues to optimize maintenance operations and save on energy bills.
Annual Energy Savings
+
0
%
Annual Maintenance Savings
+
0
%
Projects Deployed
0
+
MAIN CAPABILITIES
- Operates with voltages between 110 and 480 Vac and 50/60 Hz
- Compatible with most types of 0-10V dimming drivers and DALI dedicated protocol for digital lighting control
- Equipped with I/Os to control low voltage sensors such as luxmeters, motion detectors, external photocell or a switch
- Measures energy in real-time and sends out alerts and reports to users
- Slim design for easy fit inside the fixtures
SECURITY
Communications between nodes takes place over a private radio network and is encrypted using the 128-bit AES protocol. AES 256-bit encryption is also available with Digi XBee PRO radio option.
Each node is also uniquely serialized with an individual address. The node firmware can be upgraded over-the-air.
RGBW Color Control
A color controller is intended for decorative lights with RGB panels and white LEDs. It provides a touch of colour for bollards, bridges lighting, decorative lighting and urban architectural layouts, both indoors and outdoors.
2 add-on options exist to control your 4 channels colored LEDs with the RTM node:
- CK (Color KineticsTM)
- DMX (with a DMX Expansion Board and a DMX Driver)
The nodes use the same self-forming, self-healing, low latency RF mesh technology as our Street and Area RTM lighting nodes and gateways, so they can easily be deployed in very large areas, both dense or rural. With the ability to connect tens of thousands of nodes in a network (with 2 billion individual addresses) and control them individually and in groups.
Both integrate seamlessly with Dimonoff | SCMS management platform.
TECHNICAL INFORMATION
Get the RTM Data Sheet
Get the RTM Wiring Diagram
Get the RTM Wiring Diagram for CK (Color Kinetics)
Get the RTM Wiring Diagram for DMX
