RME

Smart Wireless Lighting Node

Designed to create flexible, smart lighting systems for institutional, commercial, municipal and industrial environments.

Description

The RME-H3 wireless external node is an all-in-one complete and scalable lighting control system. It is suitable for both small and large networks (municipalities, car dealers, parks, commercial buildings, etc.) that use groups, zones, adaptive lighting, planning features and other advanced functionalities.

The RME-H3 stands out among others for its long lifetime, its long-range communication, a compact design offering advanced wireless control, secure and efficient firmware, and many more state-of-the-art features.

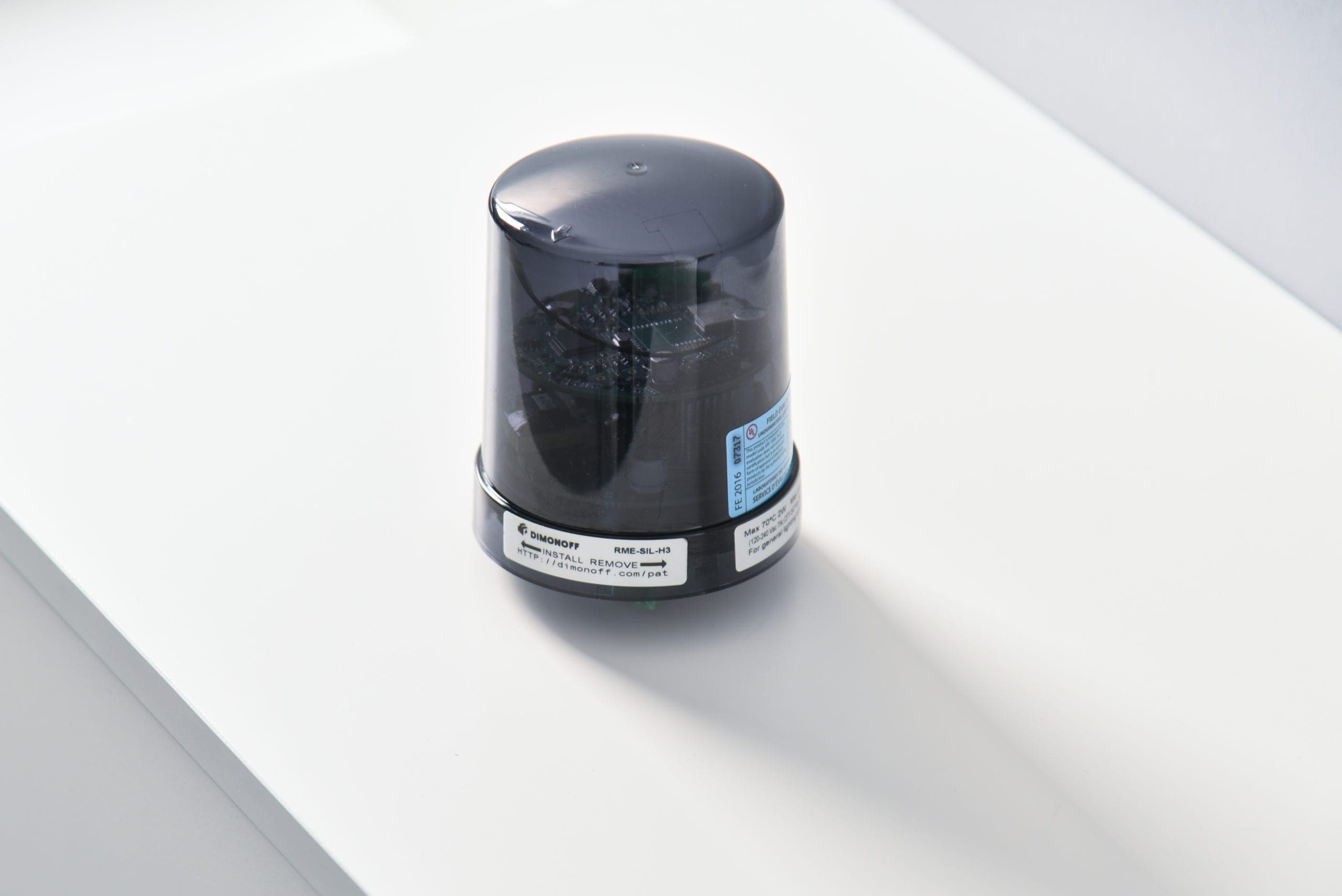

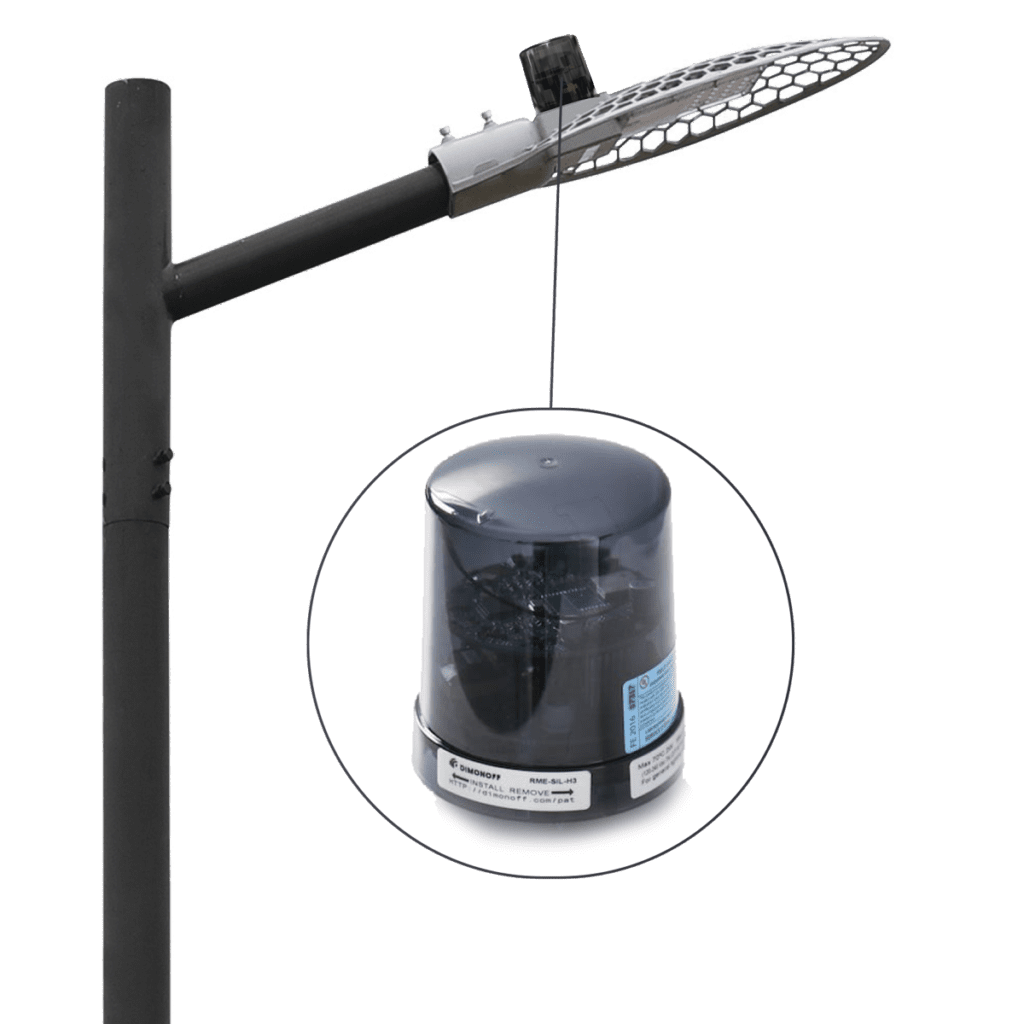

The RME is an electronic device that plugs into any light fixture equipped with a photocell receptacle. It is designed for LED fixtures, but is also compatible with other technologies, including HPS (High Pressure Sodium), MH (Metal Halide) and MV (Mercury Vapor).

Activating several RME on multiple street lights creates a wireless network that provides connectivity for other types of sensors and connected devices. The central Dimonoff | SCMS software system can then collect data and send commands to various connected devices via gateways.

Easy & Fast Installation

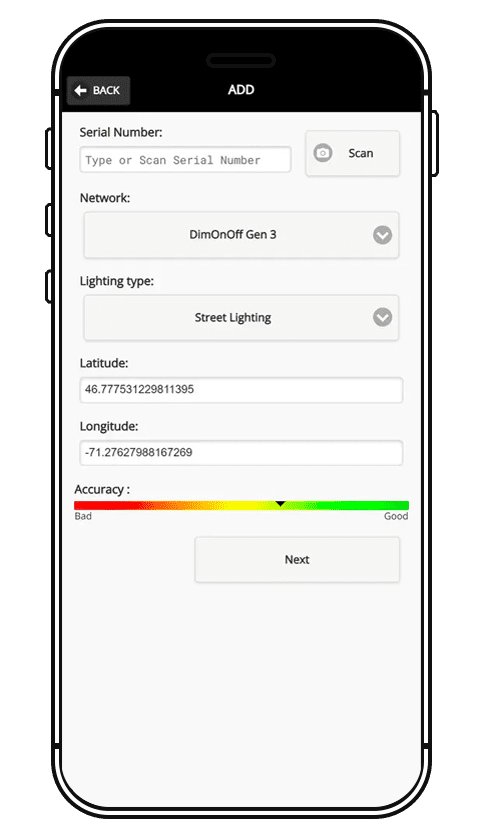

Quick, simple and economical commissioning thanks to our mobile app compatible with Dimonoff | SCMS, which also allows instant functional tests and geolocation
Operates with voltages between 110 and 480 Vac and 50/60 Hz
ANSI C136.41 7-pin or Zhaga Book 18 receptacle and includes an internal photocell
Supports for digital and analog sensors (e.g. motion detector, adaptive lighting or advanced lighting controls)

Communication options

Digi XBee PRO 2.4 GHz (DigiMesh protocol)
Digi XBee PRO 900 MHz (DigiMesh protocol)
LTE-M
Honeywell / Elster (Energy Axis EA900, SynergyNet)
NBIoT and LoRaWAN
Optional GPS Module

BENEFITS

The RME allows you to monitor your exact luminaires consumptions. It helps you track their issues in order to optimize your maintenance and save on energy invoices!

Annual Energy Savings

+ 0 %

Annual Maintenance Savings

+ 0 %

Projects Deployed

0 +

Pay for what you use

Pay the right amount. The RME-H3 precisely meters your energy consumption.

Optimize your time

Reduce time spent managing complaints and maintenance.

Detect outages

Detect problems and failures in your electric grid.

Feel safe

Rest assured as all communications are encrypted using military grade encryption protocols.

Auto calibration

Get high-value insights as the RME-H3 automatically validates its metering calibration.

Simplify commissioning

Facilitate your crews' job with our quick, simple and economical commissioning system.

Asset management

Once and for all, know precisely the exact number of light fixtures you have within your city and where they are.

Crews time management

Send the right team at the right place and at the right time with the right components.

Radio technology of your choice

Choose the radio technology your city needs: long range, mesh network, we have it.

MAIN CAPABILITIES

Our RME smart nodes mesure every electrical characteristics in the luminaires and detect when an anomaly has occurred or is about to occur so it can report and warn you. That way you’re always up to date and your maintenance is optimized as well as the life cycle of you luminaires.

That’s only one of its many capacities.

Technical Specifications

Complete utility-grade power metering built-in with multiple user-configurable alarms
Military grade 128bits and 256bits AES communication encryption (XBee)
Adaptable Sink & Source 0-10V output compatible with all dimming drivers
DALI standard IEC 62386 2014
Optional DALI BUS power supply
High capacity long life relay
Multiple Radio options (DIGI, Honeywell / Elster, RPMA (Trilliant)

Same module for all voltages from 110 to 480 Vac 50/60Hz
Long range communication
Standard ANSI C136-41 (2014) with 5 or 7 prongs twist lock connector also compatible with C136-10 sockets or Zhaga Book 18; Option for ANSI C137.4-2018.
Sub 1W module consumption well suited for energy savings goals
Compact addressable modules that offer advanced wireless control, monitoring & metering for each fixture

Contains the most evolved firmware on the market with state-of-the-art features to ensure system robustness and future-proof over the air upgradable
Tools for quick, simple and economical commissioning with complete functional test and geolocation (optional) at installation
Communicates wirelessly using a robust 2.4GHz (900Mhz option) ISM (Industrial, scientific and medical certified) meshed radio signal

SECURITY

Communications between nodes takes place over a private radio network and is encrypted using the 128-bit and 256-bits AES protocols. Each node is also uniquely serialized with an individual address.
