Gateway G3+
Wireless Control Panel
Designed to manage communication between groups of wireless lighting nodes and the IoT asset management platform.
DESCRIPTION
A central component of the Dimonoff wireless lighting control system, the G3 gateway allows communication between the various Dimonoff wireless smart lighting nodes and management platforms Dimonoff | SCMS and DOO Express.
Each gateway independently manages a group of nodes, eliminating any dependence on a central server for normal operation and making the system redundant and robust.

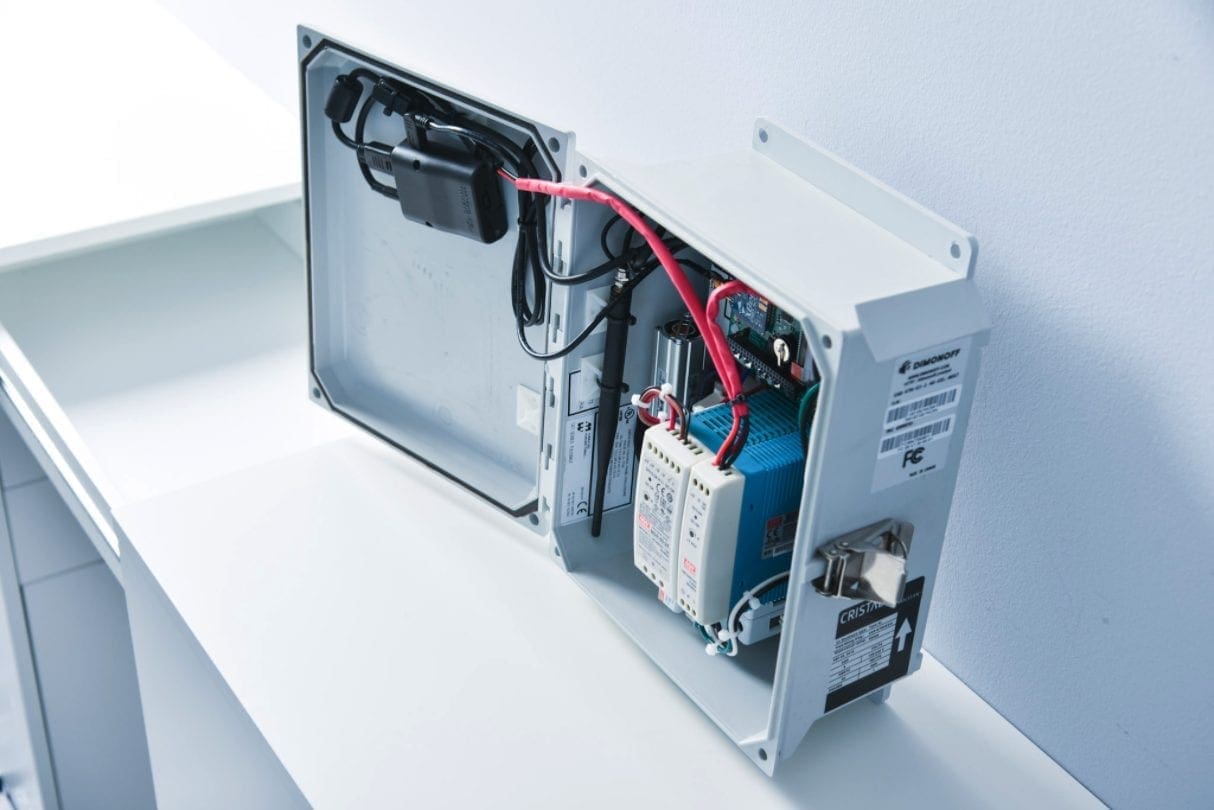

Gateways are mounted in NEMA4X (IP66) enclosures and are therefore suitable for both indoor and outdoor applications.
EASY & FAST INSTALLATION
- Easy configuration using the Dimonoff’s Installation App to commission every Gateway
- Ethernet option: a static IP address on your network is required
- Cellular option: a standard SIM card on a static public IP is required with at least 500 MB/month
COMMUNICATION OPTIONS
With the server :
- Ethernet (LAN)
- Cellular modem
With the nodes :
- Digi XBee PRO 2.4 GHz
- DIGI XBee PRO 900 MHz
MAIN CAPABILITIES
- Control large numbers of intelligent wireless lighting nodes per gateway (500 recommended)
- Designed for both indoor and outdoor applications
- No-latency communication with Dimonoff | SCMS and DOO Express via Ethernet (LAN) or cellular
- BACnet compatible
SECURITY
Communications are encrypted using 128-bit AES protocol for Digi radios. The Wirepas connectivity uses 128-bit OMAC1 message integrity code.
TECHNICAL INFORMATION
Get G3+ Gateway Data Sheet
